Copper polyester tape (Cu/PET)

Copper polyester tape (Cu/PET)

Product Description

Technical Data Sheet

Cu + PET thickness (µm)	Tensile strength (N/mm2)	Elongation (%)
15+12	≥ 115	≥ 10
15+23	≥ 115	≥ 15
18+12	≥ 115	≥ 10
18+23	≥ 115	≥ 15
20+23	≥ 115	≥ 15
Color	Blue, green, pink, white

Footnotes:

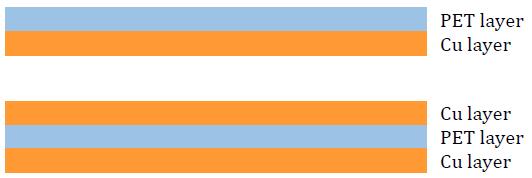

The normal structure is Cu/PET, but we also have PET/Cu/PET and Cu/PET/Cu
Width, ID, OD, and other properties, please contact us
Other specifications are available upon request
